Workflow overview

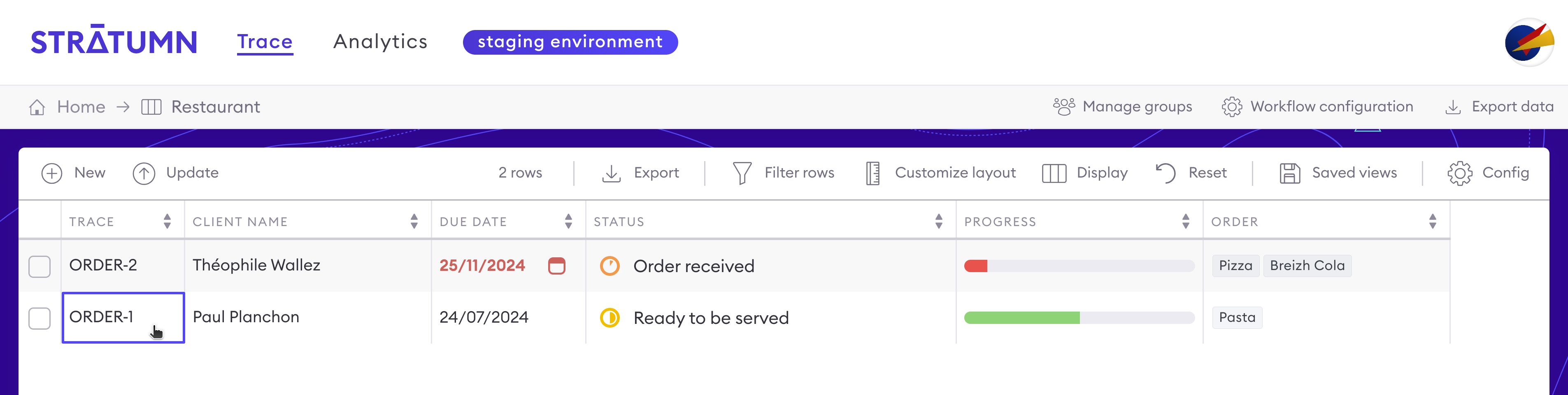

The worfklow overview is a table that displays informations about the workflow’s traces.Each row represents a trace and its columns are composed of widgets.
Show code example
Show code example
Example based on the above screenshot
Copy
const overview = {
tableWidthBuffer: 15,
minColumnsWidth: 'small',
minRowsHeight: 30,
selectBoxWidth: 34,
overscanRowCount: 1,
rowsHeight: 42,
columnsWidth: 'medium',
dataSelectorPath: 'meta.traceId',
defaultDisplay: {
columns: [
'name',
'clientName',
'dueDate',
'status',
'progress',
'order'
]
},
fixedColumns: [
{
key: 'name',
header: 'Trace',
width: 'small',
cell: {
view: {
type: 'text',
path: 'meta.traceName'
},
link: {
rootUrl: '/trace/',
urlPath: 'meta.traceId',
openInNewTab: true
}
},
sort: { type: 'text', path: 'meta.traceCreatedAt' }
}
],
columns: [
{
key: 'clientName',
header: 'Client name',
width: 'medium',
cell: {
view: {
type: 'text',
path: `data.clientName`
}
}
},
{
key: 'dueDate',
header: 'Due Date',
width: 125,
cell: {
view: {
type: 'date',
path: `data.dueDate`,
isDeadline: true,
deadlineWarningBuffer: 10,
donePath: `data.isPrepared`
}
}
},
{
key: 'status',
header: 'Status',
width: 'medium',
cell: {
view: {
type: 'status',
path: `data.status.value`,
progressPath: `data.status.progress`
}
}
},
{
key: 'progress',
header: 'Progress',
width: 'medium',
cell: {
view: {
type: 'progress',
path: `data.status.progress`
}
}
},
{
key: 'order',
header: 'Order',
width: 'medium',
cell: {
view: {
type: 'labels',
path: `data.order`
},
tooltip: {
conditionPath: `data.order`,
delay: 200,
body: {
view: {
key: 'Order',
type: 'keyValue',
value: {
view: {
path: `data.order`,
type: 'list'
}
}
}
}
}
}
}
]
};
Trace infos

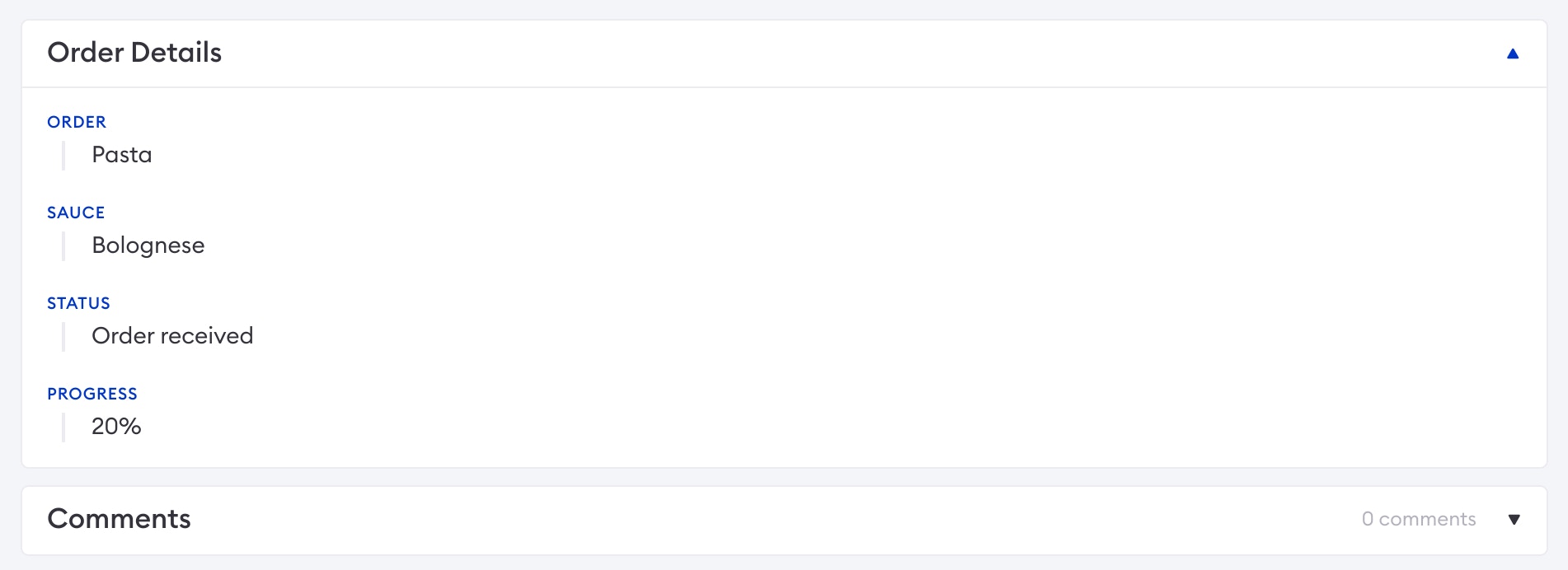

The trace infos is displayed within the trace and consist of multiple expandable and configurable blocks. These blocks are composed of widgets that showcase relevant details about the current state of the trace.
A Comments window is usually placed at the bottom of the trace infos.
Show code example
Show code example
Example based on the above screenshot
Copy
const traceInfos = {
view: {
type: 'box',
sections: [
{
view: {
title: 'Order details',
type: 'window',
collapsable: true,
displayItemCount: false,
items: [
{
view: {
type: 'keyValue',
key: 'Order',
value: {
view: {
type: 'text',
path: `data.order`
}
}
}
},
{
view: {
key: 'Sauce',
type: 'keyValue',
value: {
view: {
path: `data.sauce`,
type: 'text'
}
}
}
},
{
view: {
key: 'Status',
type: 'keyValue',
value: {
view: {
type: 'text',
path: `data.status.value`
}
}
}
},
{
view: {
key: 'Progress',
type: 'keyValue',
value: {
view: {
path: `data.status.progress`,
type: 'number',
format: {
options: { style: 'percent', maximumFractionDigits: 0 }
}
}
}
}
}
]
}
},
{
view: {
type: 'window',
title: 'comments',
collapsable: true,
displayItemCount: true,
items: [
{
view: {
type: 'array',
itemsPath: 'data.comments',
itemsWidget: { view: { type: 'comment' } },
defaultSort: { direction: 'desc' }
}
}
]
}
}
]
}
};
