Notifications - Stratumn

Notifications are a way to communicate updates, alerts, or information to users or groups. Usually in email format, they are sent by Notification API.

Overview

Notifications in configuration serve multiple purposes, including:

Alerting users about changes in workflows.
Sending important updates or reminders via email.
Inviting a user to take a next action on a trace…

How it works in configuration

The notifications are not directly sent through configuration or the dsl package. They are stored under state.notifications an an array. When performing an action on a trace, Trace API is creating a link and checking state.notifications. If it founds one, it will call Notification API with the correct template. To send a notification, the data might contains variables derived from the state (such as lastActionName, status, etc.). Thus, notifications are usually built and sent inside the effects of an action. The action needs to provide the correct data to the state.notifications, typed as NotificationOptions inside the dsl package :

Notification Options

Documentation
Example
Usage

title

string

The title of the notification.

receiver?

NotificationReceiver

Identifies the user, account, or email to notify.

groupLabel?

string

If filled, it will notify a group. Corresponds to the trace group.label, which is a camelCase string (e.g., traceBot, agreTa).

channel?

NotificationChannel

The notification channel. Defaults to EMAIL.

template?

Template

The template used for the notification layout.

type Template = {
  type?: string; // default 'HTML'
  version?: string; //  default '1.0.0'
  name: TemplateName;
  config: TemplateConfigMap[TemplateName]; // based on TemplateName, can be SchemaFullConfig, SchemaLessConfig, NotifyForAction.
};

Possible values for TemplateName:

enum TemplateName = {
 SCHEMA_FULL: "schema-full";
 SCHEMA_MINIMAL: "schema-minimal";
 SIGNUP: "signup";
 MENTION: "mention";
 EMPTY: "empty";
 NOTIFY_FOR_ACTION: "notify-for-action";
 OFFLINE: "offline";
};

In configuration, usually 3 are being used: SCHEMA_FULL, SCHEMA_MINIMAL and NOTIFY_FOR_ACTION.Please see below to check all available templates.

sender?

NotificationSender

Information about the sender. Defaults to:

name: Stratumn
issuer: Name of the microservice (e.g., TRACE, OFFLINE).
traceId: ID of the current trace.
workflowId: ID of the current workflow.

resourceId?

string

Usually the trace ID. Defaults to -9999.

resourceType?

string

The resource type. Defaults to TRACE.

avatar?

string

Optional avatar URL for the notification.

icon?

string

Optional icon URL for the notification.

message?

string

The notification message. Can be empty if template is used.

data?

NotificationData

Custom data associated with the notification, related to attachments.

messageType?

string

The format of the message content. Defaults to MARKDOWN.

priority?

number

Priority flag for ordering notifications in batch emails.

sendEmailImmediately?

boolean

If false, no email will be sent alongside the notification.

templateConfig?

NotificationTemplateConfig

Configuration specific to the selected template.

const notificationOptions = {
  title: "Notification Example",
  receiver: {
    email: "[email protected]",
    userId: "12345",
  },
  groupLabel: "finance",
  channel: "EMAIL",
  template: {
    name: "schema-full",
    type: "HTML",
    version: "1.0.0",
    config: {
      traceName: "Example Trace",
      traceId: "trace-1234",
      workflowName: "Example Workflow",
      additionalInfo: [
        { title: "Trace creation date", value: "01/01/2023" },
        { title: "Status", value: "Pending" },
      ],
    },
  },
  sender: {
    name: "Stratumn",
    issuer: "TRACE",
    traceId: "trace-1234",
    workflowId: "wf-5678",
  },
  resourceType: "TRACE",
};

Send an email when doing the action with the template

// src/trace/workflow/definitions/functions
import {
NotificationChannel,
NotificationOptions,
TemplateName,
TemplateType,
LinkMetaData,
} from "@stratumn/dsl";

export function createNotification(
meta: Readonly<LinkMetaData<GroupLabel, PaymentActionLabel>>,
groupLabel: string,
data: PaymentData
): NotificationOptions {
const channel = "EMAIL" as NotificationChannel.EMAIL;
const type = "HTML" as TemplateType.HTML;
const name = "schema-full" as TemplateName.SCHEMA_FULL;

    const payloadNotification: NotificationOptions = {
      title: `Payment`,
      groupLabel,
      channel,
      template: {
        type,
        version: "1.0.0",
        name,
        config: {
          traceName: meta.traceName,
          traceId: meta.traceId,
          workflowName: "Example Workflow",
          progress: data.status.progress * 100,
          lastAction: {
            actionName: meta.action.title,
            groupName: meta.group.name,
          },
          nextAction: {
            actionName: "test",
            groupName: data.entity,
          },
          additionalInfo: [
            { title: "Trace creation date", value: "01/01/2025" },
            { title: "Payment Currency", value: data.paymentCurrency },
            { title: "Total Amount", value: data.totalAmount },
          ],
        },
      },
    };
    return payloadNotification;

}

// src/trace/workflow/actions/markPaymentReceived.ts

async function markPaymentReceivedEffect(dsl: PaymentContext<FormData>) {
const { state, formData, meta } = dsl.$variables;
    const { data } = state;
    const { createNotification } = dsl.$functions;

    const notification = createNotification(
      state.meta,
      state.data.entityLabel,
      state.data
    );
    state.notifications.push(notification);
    // Will push inside state.notifications the template, then it will be handled by Trace API

}

Email Templates

Schema Full

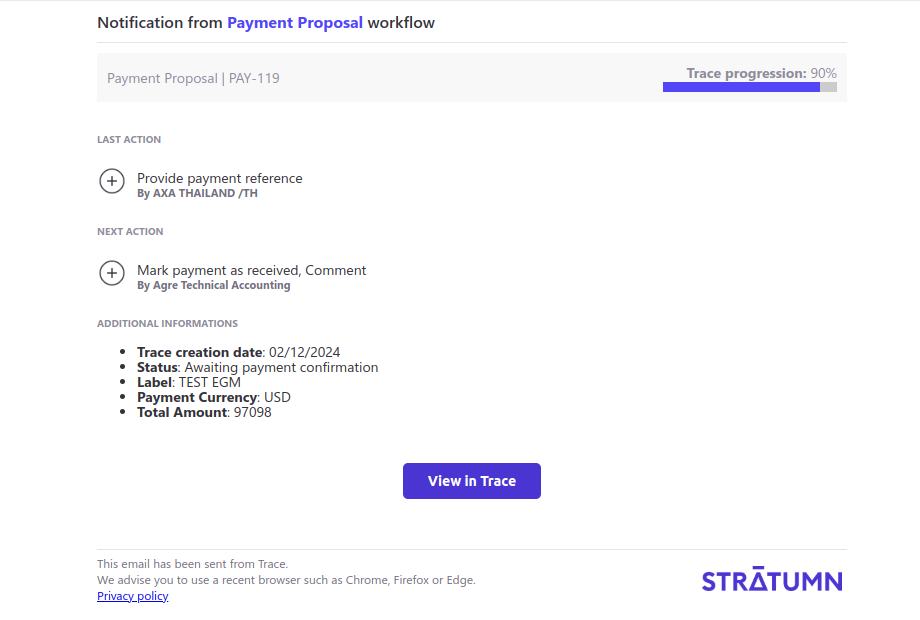

The schema-full template has a rich HTML structure including metadata, workflow context, trace context, etc. It is the template used when a “Last Action” and “Next Actions” from the trace are mentioned, and if any additional information are provided.

Screenshot
API
Type
Example

traceName

string

The name of the trace associated with the notification.

traceId

string

ID of the current trace.

workflowName

string

required

The workflow name.

progress

number

Progress status of the trace. Should be a number between 0 and 100, representing the percentage completion.

lastAction

object

Represents the most recent action performed by the group associated with the previous step in the trace. Useful for providing context about what was done prior to the current state.

actionName : The name of the last action performed (e.g., ‘Approve’, ‘Submit’, ‘Reject’). The value is derived from the action.title field in the metadata.
groupName : The name of the group associated with the previous action, derived from the group.name field in the metadata.

nextAction

object

Represents the next actions available to the recipient of the notification.

actionName : It can be a single action name, typically one of the values in ActionLabel (e.g., ‘Create proposal’, ‘Validate scope’). It can also be a concatenated string of multiple action names, separated by commas (e.g., ‘Create proposal, Validate scope’).If custom strings are needed, they must adhere to the format used in the application.
groupName : The name of the group associated with the next action (e.g., ‘agre TA’).

additionalInfo

array

Represents additional contextual information about the workflow or action. Each entry consists of a title and a corresponding value:

title: type string, A descriptive label for the information (e.g., ‘Trace creation date’, ‘Status’).
value: type string or number. The associated value, which can be a string or a number (e.g., ‘Pending’, 1000).

comment

array

Additionnal comments for the notification, in Rich Text. Will be processed as HTML String. Its type is CommentPart[].

export interface CommentPart {
  type: CommentPartType;
  children: CommentContent[];
  isEmpty?: boolean;
}

export interface CommentContent {
  text?: string;
  type?: ContentType;
  user?: UserInfos;
  children?: CommentContent[];
  isEmpty?: boolean;
  italic?: boolean;
  bold?: boolean;
  underline?: boolean;
  url?: string;
}

export enum CommentPartType {
  SUBJECT = 'subject',
  PARAGRAPH = 'paragraph',
  H1 = 'heading-one',
  UNORDERED_LIST = 'unordered-list',
  TABLE = 'table'
}

export enum ContentType {
  TEXT = 'text',
  MENTION = 'mention',
  LINK = 'link',
  TABLE_ROW = 'table-row',
  TABLE_CELL = 'table-cell'
}

Typescript

  type SchemaFullConfig = {
    traceName?: LinkMetaData<'traceName'>['traceName'];
    traceId?: LinkMetaData<'traceId'>['traceId'];
    workflowName: string;
    /* Should be a number between 0 and 100, representing the percentage completion.*/
    progress?: number;
    /* Represents the most recent action performed by the group associated with */
    /* the previous step in the workflow. */
    lastAction?: {
        actionName: LinkMetaData<'action'>['action']['title'];
        groupName: LinkMetaData<'group'>['group']['name'];
    };
    nextAction?: {
        actionName: string;
        groupName: string;
    };
    additionalInfo?: Array<{ title: string; value: string | number }>;
    comment?: CommentPart[];
  };

Send an email when doing the action with the template

  // src/trace/workflow/definitions/functions
  import {
  NotificationChannel,
  NotificationOptions,
  TemplateName,
  TemplateType,
  LinkMetaData,
  } from "@stratumn/dsl";

  export function createNotification(
  meta: Readonly<LinkMetaData<GroupLabel, PaymentActionLabel>>,
  groupLabel: string,
  data: PaymentData
  ): NotificationOptions {
  const channel = "EMAIL" as NotificationChannel.EMAIL;
  const type = "HTML" as TemplateType.HTML;
  const name = "schema-full" as TemplateName.SCHEMA_FULL;

  const payloadNotification: NotificationOptions = {
    title: `Payment`,
    groupLabel,
    channel,
    template: {
      type,
      version: "1.0.0",
      name,
      config: {
        traceName: meta.traceName,
        traceId: meta.traceId,
        workflowName: "Workflow Example",
        progress: data.status.progress * 100,
        lastAction: {
          actionName: meta.action.title,
          groupName: meta.group.name,
        },
        nextAction: {
          actionName: "test",
          groupName: data.entity,
        },
        additionalInfo: [
          { title: "Trace creation date", value: "01/01/2025" },
          { title: "Payment Currency", value: data.paymentCurrency },
          { title: "Total Amount", value: data.totalAmount },
        ],
      },
    },
  };
  return payloadNotification;

}

// src/trace/workflow/actions/markPaymentReceived.ts

async function markPaymentReceivedEffect(dsl: PaymentContext<FormData>) {
const { state, formData, meta } = dsl.$variables;
    const { data } = state;
    const { createNotification } = dsl.$functions;

    const notification = createNotification(
      state.meta,
      state.data.entityLabel,
      state.data
    );
    state.notifications.push(notification);
    // Will push inside state.notifications the template, then it will be handled by Trace API

}

Schema Minimal

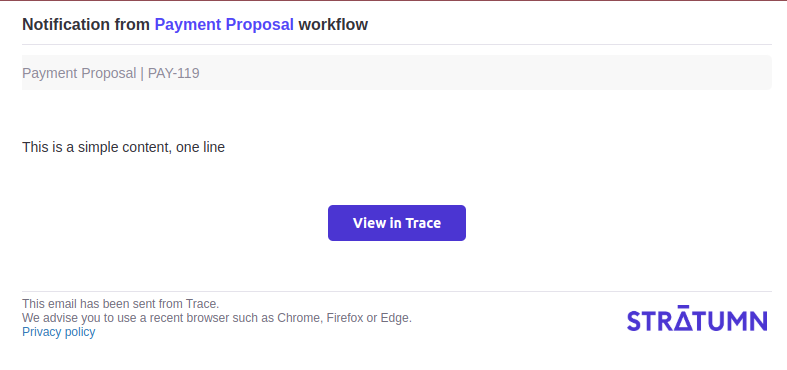

The schema-minimal template is a more simple content html structure.

Screenshot
API
Type
Example

Typescript

  type SchemaMinimalConfig = {
    traceName?: LinkMetaData<'traceName'>['traceName'];
    traceId?: LinkMetaData<'traceId'>['traceId'];
    workflowName: string;
    additionalInfo?: Array<{ title: string; value: string | number }>;
    content?: string;
  };

Send an email when doing the action with the template

// src/trace/workflow/definitions/functions
import {
NotificationChannel,
NotificationOptions,
TemplateName,
TemplateType,
LinkMetaData,
} from "@stratumn/dsl";

export function createNotification(
meta: Readonly<LinkMetaData<GroupLabel, PaymentActionLabel>>,
groupLabel: string,
data: PaymentData
): NotificationOptions {
const channel = "EMAIL" as NotificationChannel.EMAIL;
const type = "HTML" as TemplateType.HTML;
const name = "schema-minimal" as TemplateName.SCHEMA_MINIMAL;

  const payloadNotification: NotificationOptions = {
    title: `Payment`,
    groupLabel,
    channel,
    template: {
      type,
      version: "1.0.0",
      name,
      config: {
        traceName: meta.traceName,
        traceId: meta.traceId,
        workflowName: "Workflow Example",
        content: "This is the content of the email"
      },
    },
  };
  return payloadNotification;

}

// src/trace/workflow/actions/markPaymentReceived.ts

async function markPaymentReceivedEffect(dsl: PaymentContext<FormData>) {
const { state, formData, meta } = dsl.$variables;
  const { data } = state;
  const { createNotification } = dsl.$functions;

  const notification = createNotification(
    state.meta,
    state.data.entityLabel,
    state.data
  );
  state.notifications.push(notification);
  // Will push inside state.notifications the template, then it will be handled by Trace API

}

Notify For Action

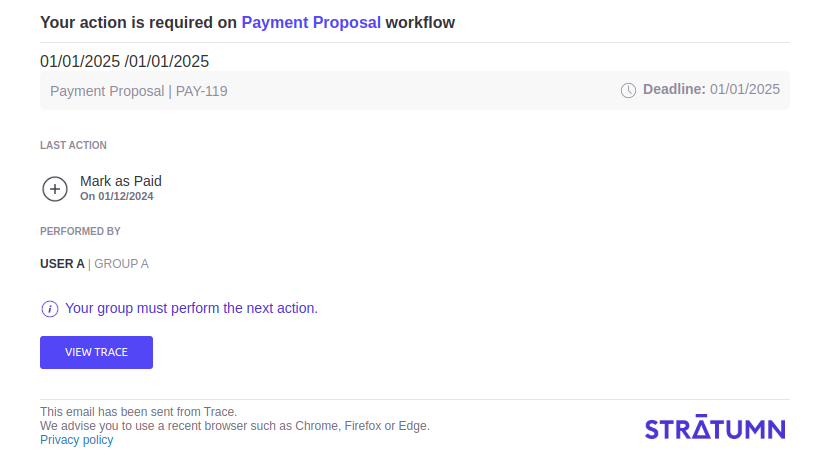

The notify-for-action template is a notification prompting the user to take an action.

Screenshot
API
Type
Example

Typescript

  type NotifyForAction = {
    workflowName: string;
    lastActionName: string;
    lastActionDate: string;
    lastUserName: string;
    lastUserGroup: string;
    deadlineDate?: string;
    traceName: string;
    traceLink: string;
  };

Send an email when doing the action with the template

// src/trace/workflow/definitions/functions
import {
NotificationChannel,
NotificationOptions,
TemplateName,
TemplateType,
LinkMetaData,
} from "@stratumn/dsl";

export function createNotification(
meta: Readonly<LinkMetaData<GroupLabel, PaymentActionLabel>>,
groupLabel: string,
data: PaymentData
): NotificationOptions {
const channel = "EMAIL" as NotificationChannel.EMAIL;
const type = "HTML" as TemplateType.HTML;
const name = "notify-for-action" as TemplateName.NOTIFY_FOR_ACTION;

  const payloadNotification: NotificationOptions = {
    title: `Payment`,
    groupLabel,
    channel,
    template: {
      type,
      version: "1.0.0",
      name,
      config: {
        traceName: meta.traceName,
        traceId: meta.traceId,
        workflowName: "Workflow Example",
        lastActionName: data.lastAction.name;
        lastActionDate: data.last;
        lastUserName: "USER A";
        lastUserGroup: "GROUP A";
        deadlineDate?: "01/01/2026";
        traceLink: "https://api.com/pay_199";
      },
    },
  };
  return payloadNotification;
}

// src/trace/workflow/actions/markPaymentReceived.ts

async function markPaymentReceivedEffect(dsl: PaymentContext<FormData>) {
const { state, formData, meta } = dsl.$variables;
  const { data } = state;
  const { createNotification } = dsl.$functions;

  const notification = createNotification(
    state.meta,
    state.data.entityLabel,
    state.data
  );
  state.notifications.push(notification);
  // Will push inside state.notifications the template, then it will be handled by Trace API
}

Workflow configuration

​Overview

​How it works in configuration

​Notification Options

​Email Templates

​Schema Full

​Schema Minimal

​Notify For Action

Overview

How it works in configuration

Notification Options

Email Templates

Schema Full

Schema Minimal

Notify For Action
